The Pipe Network Unit Operation for DWSIM allows modelling and simulation of pipe networks connected through nodes with multiple sources and sinks. Rigorous compositional fluid property calculations are done by DWSIM Property Packages.
* Supports Pipe Segments, Valves, Pumps, Compressors and Gas-Liquid Separators;
* Rigorous fluid properties and phase distribution calculated with DWSIM Property Packages

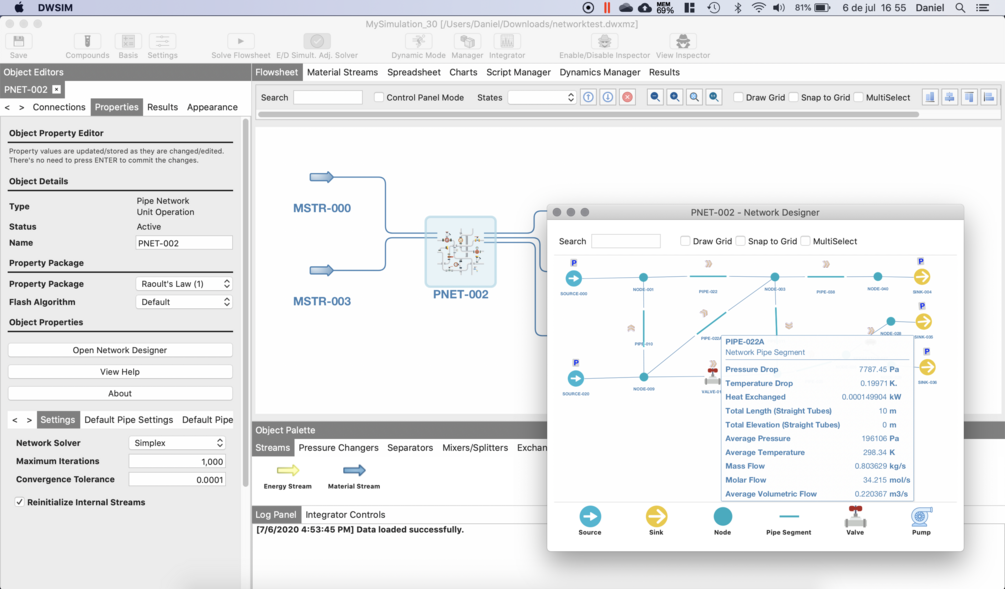

* Fully-featured Graphical Network Designer
* Supports Pressure and Mass/Molar/Volumetric Flow specification on endpoints (Sources and Sinks)
This Free Version is limited to a maximum of 20 interconnected network objects.
Pipe Network Unit Operation (Free Version Compressed ZIP File)
